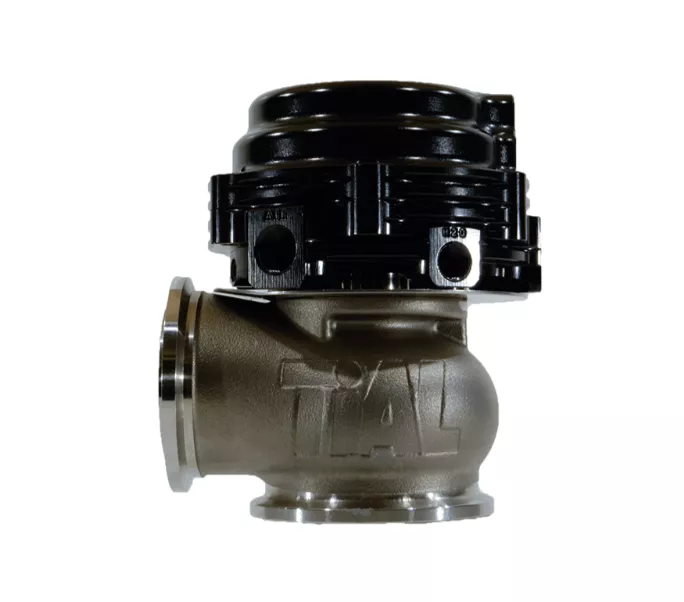

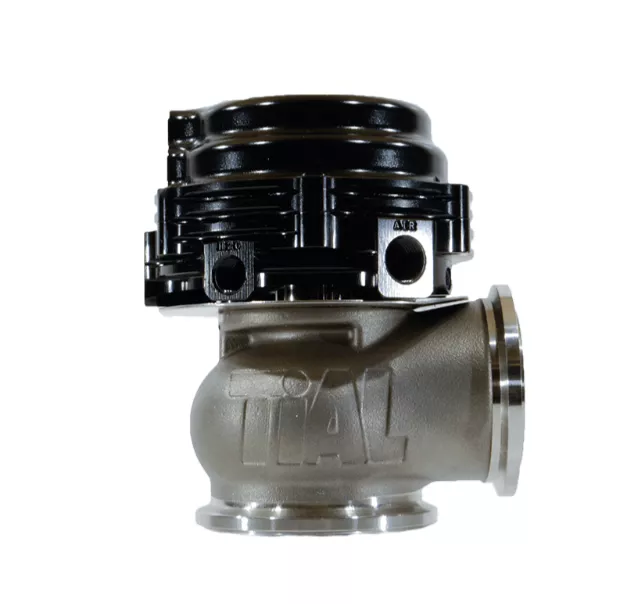

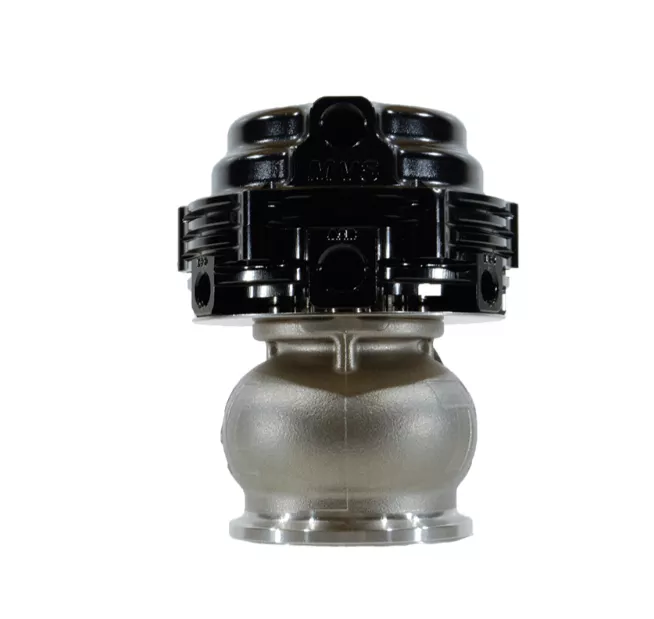

MVS WASTEGATE
Technical Specifications:
- High temp alloy is used for valve and stainless steel valve housing will offer longer product life compared to competing designs.
- High temperature silicone reinforced actuator diaphragm.
- Stainless Steel actuator spring gives consistent pressure at high temperature.
- Stainless Steel is used for the valve seat, and valve bushing.
- All Stainless Steel hardware.
- Mating weld flanges are 304L.
- 3 lower ports and 2 top air signal ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.

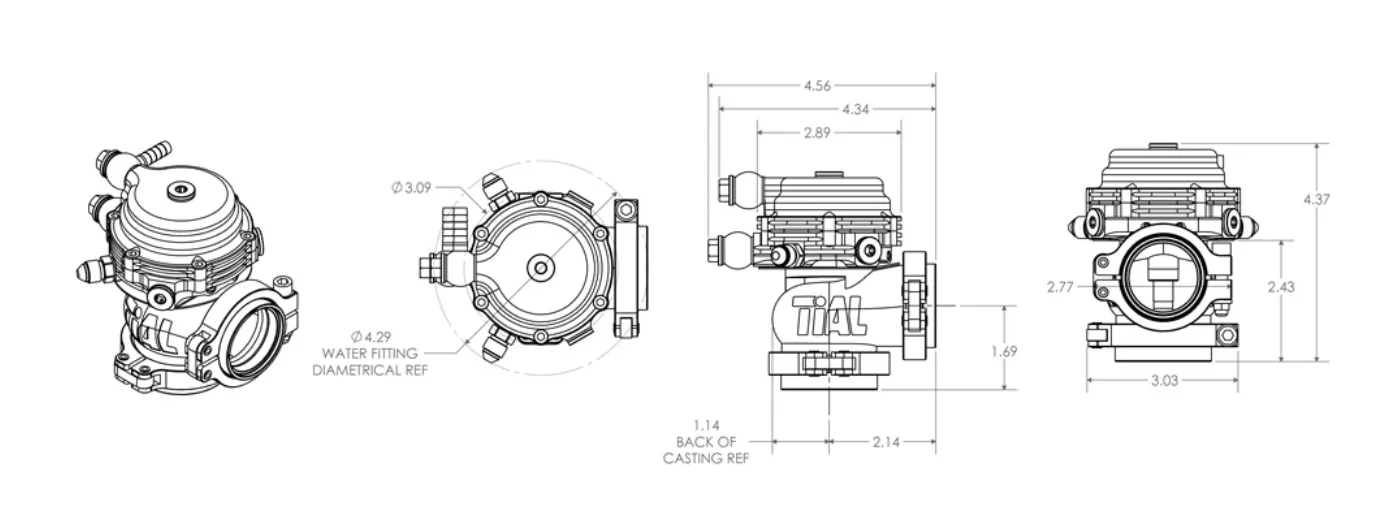

- Ultra compact design fits in very tight spaces, the unit stands only 3.7" tall.
- V-Band inlet and outlet make install easy, flanges and clamps are in the box!
- Integrated -4 AN water cooling ports that cycle a small amount of coolant through the actuator housing to keep the temperatures down in extreme conditions.
| Item# | Description | Qty. | Price | |
|---|---|---|---|---|
| 003762 | Wastegate 38mm 1.7 Bar (24.6551 psi) Silver | $354.95 | ||
| 003842 | Wastegate 38mm 1.7 Bar (24.6551 psi) Blue | $354.95 | ||
| 003840 | Wastegate 38mm 1.7 Bar (24.6551 psi) Black | $354.95 | ||
| 003993 | Wastegate 38mm 1.7 Bar (24.6551 psi) Purple | $354.95 | ||
| 003843 | Wastegate 38mm 1.7 Bar (24.6551 psi) Red | $354.95 | ||
| 004605 | Wastegate 38mm 1.5 Bar (21.75 psi) Purple | $354.95 | ||
| 004247 | Wastegate 38mm 1.5 Bar (21.75 psi) Red | $354.95 | ||
| 004885 | Wastegate 38mm 1.4 Bar (20.30 psi) Blue | $354.95 | ||
| 004709 | Wastegate 38mm 1.4 Bar (20.30 psi) Black | $354.95 | ||
| 006743 | Wastegate 38mm 1.4 Bar (20.30 psi) Red | $354.95 | ||
| 004250 | Wastegate 38mm 1.3 Bar (18.85 psi) Black | $354.95 | ||
| 003410 | Wastegate 38mm 1.2 Bar (17.40 psi) Black | $354.95 | ||
| 004800 | Wastegate 38mm 1.2 Bar (17.40 psi) Red | $354.95 | ||
| 003980 | Wastegate 38mm 1.1 Bar (15.95 psi) Silver | $354.95 | ||
| 006134 | Wastegate 38mm 1.1 Bar (15.95 psi) Black | $354.95 | ||
| 004716 | Wastegate 38mm 1.1 Bar (15.95 psi) Purple | $354.95 | ||
| 003979 | Wastegate 38mm 1.1 Bar (15.95 psi) Red | $354.95 | ||
| 003868 | Wastegate 38mm 1.0 Bar (14.50 psi) Silver | $339.95 | ||
| 003828 | Wastegate 38mm1.0 Bar (14.50 psi) Blue | $339.95 | ||
| 003046 | Wastegate 38mm 1.0 Bar (14.50 psi) Black | $339.95 | ||
| 004327 | Wastegate 38mm 1.0 Bar (14.50 psi) Purple | $339.95 | ||
| 003512 | Wastegate 38mm 1.0 Bar (14.50 psi) Red | $339.95 | ||
| 004411 | Wastegate 38mm .9 Bar (13.05 psi) Blue | $354.95 | ||
| 003765 | Wastegate 38mm .9 Bar (13.05 psi) Black | $354.95 | ||
| 004819 | Wastegate 38mm .9 Bar (13.05 psi) Purple | $354.95 | ||
| 003855 | Wastegate 38mm .8 Bar (11.60 psi) Silver | $354.95 | ||
| 003835 | Wastegate 38mm .8 Bar (11.60 psi) Blue | $354.95 | ||
| 003909 | Wastegate 38mm .8 Bar (11.60 psi) Black | $354.95 | ||
| 003854 | Wastegate 38mm .8 Bar (11.60 psi) Purple | $354.95 | ||
| 003853 | Wastegate 38mm .8 Bar (11.60 psi) Red | $354.95 | ||
| 004348 | Wastegate 38mm .7 Bar (10.15 psi) Silver | $354.95 | ||
| 003870 | Wastegate 38mm .7 Bar (10.15 psi) Blue | $354.95 | ||
| 004090 | Wastegate 38mm .7 Bar (10.15 psi) Black | $354.95 | ||
| 003794 | Wastegate 38mm .7 Bar (10.15 psi) Purple | $354.95 | ||
| 004349 | Wastegate 38mm .7 Bar (10.15 psi) Red | $354.95 | ||
| 003973 | Wastegate 38mm .6 Bar (8.70 psi) Silver | $354.95 | ||
| 003908 | Wastegate 38mm .6 Bar (8.70 psi) Blue | $354.95 | ||
| 003763 | Wastegate 38mm .6 Bar (8.70 psi) Black | $354.95 | ||
| 003974 | Wastegate 38mm .6 Bar (8.70 psi) Red | $354.95 | ||
| 003889 | Wastegate 38mm .5 Bar (7.25 psi) Silver | $339.95 | ||
| 003841 | Wastegate 38mm .5 Bar (7.25 psi) Blue | $339.95 | ||
| 003888 | Wastegate 38mm .5 Bar (7.25 psi) Black | $339.95 | ||
| 005777 | Wastegate 38mm .5 Bar (7.25 psi) Purple | $339.95 | ||
| 003422 | Wastegate 38mm .5 Bar (7.25 psi) Red | $339.95 | ||
| 003039 | Wastegate 38mm .4 Bar (5.80 psi) Silver | $354.95 | ||
| 005287 | Wastegate 38mm .4 Bar (5.80 psi) Blue | $354.95 | ||
| 003040 | Wastegate 38mm .4 Bar (5.80 psi) Black | $354.95 | ||
| 004477 | Wastegate 38mm .3 Bar (4.35 psi) Silver | $354.95 | ||
| 003936 | Wastegate 38mm .3 Bar (4.35 psi) Blue | $354.95 | ||
| 003767 | Wastegate 38mm .3 Bar (4.35 psi) Black | $354.95 |

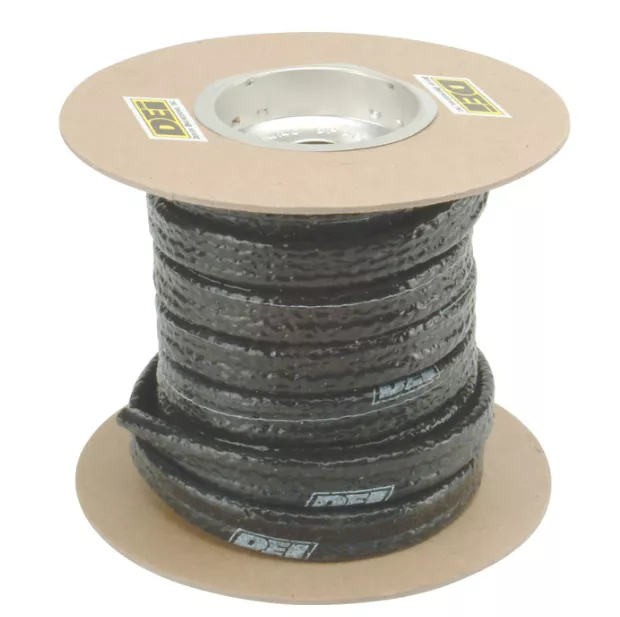

Fire Sleeve™ - 0.375"
