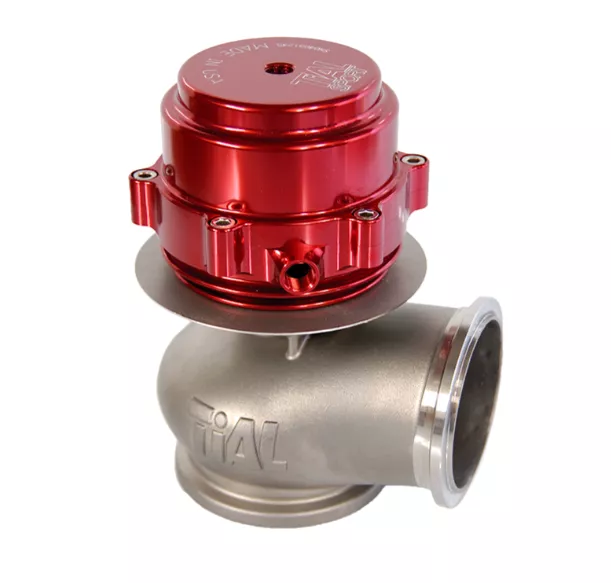

V50 WASTEGATE
The V50 shares the same form factor with the legendary V60, but offers a smaller valve size for applications that are sensitive to EMAP-induced valve lift.
Technical Specifications:
- High temp alloy is used for valve and stainless steel valve housing will offer longer product life compared to competing designs.
- High temperature silicone reinforced actuator diaphragm.
- Stainless Steel actuator spring gives consistent pressure at high temperature.
- Stainless Steel is used for the valve seat and valve bushing.
- All Stainless Steel hardware.
- Mating weld flanges are 304L.
- M10 air signal ports for easy install.
Included in the package:
- V50 wastegate assembly
- SS Band V-clamps and flanges (Optional legacy billet clamps are available upon request at an additional charge)
- All air fittings, CNC machined in-house, from stainless steel and aluminum
| Item# | Description | Qty. | Price | |
|---|---|---|---|---|
| 005043 | Wastegate 50mm 1.02 bar (14.79 psi) Silver | $552.00 | ||
| 005044 | Wastegate 50mm 1.02 bar (14.79 psi) Blue | $552.00 | ||
| 005045 | Wastegate 50mm 1.02 bar (14.79 psi) Black | $552.00 | ||
| 005046 | Wastegate 50mm 1.02 bar (14.79 psi) Purple | $552.00 | ||
| 005047 | Wastegate 50mm 1.02 bar (14.79 psi) Red | $552.00 | ||
| 005048 | Wastegate 50mm 1.10 bar (15.95 psi) Silver | $552.00 | ||
| 005049 | Wastegate 50mm 1.10 bar (15.95 psi) Blue | $552.00 | ||
| 005050 | Wastegate 50mm 1.10 bar (15.95 psi) Black | $552.00 | ||
| 005051 | Wastegate 50mm 1.10 bar (15.95 psi) Purple | $552.00 | ||
| 005052 | Wastegate 50mm 1.10 bar (15.95 psi) Red | $552.00 | ||
| 005053 | Wastegate 50mm 1.18 bar (17.11 psi) Silver | $552.00 | ||
| 005054 | Wastegate 50mm 1.18 bar (17.11 psi) Blue | $552.00 | ||
| 005055 | Wastegate 50mm 1.18 bar (17.11 psi) Black | $552.00 | ||
| 005056 | Wastegate 50mm 1.18 bar (17.11 psi) Purple | $552.00 | ||
| 004954 | Wastegate 50mm 1.18 bar (17.11 psi) Red | $552.00 | ||
| 005093 | Wastegate 50mm 1.23 bar ( 17.84 psi) Silver | $552.00 | ||
| 005094 | Wastegate 50mm 1.23 bar ( 17.84 psi) Blue | $552.00 | ||
| 005095 | Wastegate 50mm 1.23 bar ( 17.84 psi) Black | $552.00 | ||
| 005096 | Wastegate 50mm 1.23 bar ( 17.84 psi) Purple | $552.00 | ||
| 005097 | Wastegate 50mm 1.23 bar ( 17.84 psi) Red | $552.00 | ||
| 005098 | Wastegate 50mm 1.31 bar (19.0 psi) Silver | $552.00 | ||
| 005099 | Wastegate 50mm 1.31 bar (19.0 psi) Blue | $552.00 | ||
| 005100 | Wastegate 50mm 1.31 bar (19.0 psi) Black | $552.00 | ||
| 005101 | Wastegate 50mm 1.31 bar (19.0 psi) Purple | $552.00 | ||
| 005102 | Wastegate 50mm 1.31 bar (19.0 psi) Red | $552.00 | ||
| 005103 | Wastegate 50mm 1.4 bar (20.3 psi) Silver | $552.00 | ||
| 005104 | Wastegate 50mm 1.4 bar (20.3 psi) Blue | $552.00 | ||
| 005105 | Wastegate 50mm 1.4 bar (20.3 psi) Black | $552.00 | ||
| 005106 | Wastegate 50mm 1.4 bar (20.3 psi) Purple | $552.00 | ||
| 005107 | Wastegate 50mm 1.4 bar (20.3 psi) Red | $552.00 | ||
| 005108 | Wastegate 50mm 1.49 bar (21.61 psi) Silver | $552.00 | ||
| 005109 | Wastegate 50mm 1.49 bar (21.61 psi) Blue | $552.00 | ||
| 005110 | Wastegate 50mm 1.49 bar (21.61 psi) Black | $552.00 | ||
| 005111 | Wastegate 50mm 1.49 bar (21.61 psi) Purple | $552.00 | ||
| 005112 | Wastegate 50mm 1.49 bar (21.61 psi) Red | $552.00 | ||
| 005113 | Wastegate 50mm 1.57 bar (22.77 psi) Silver | $552.00 | ||
| 005114 | Wastegate 50mm 1.57 bar (22.77 psi) Blue | $552.00 | ||
| 005115 | Wastegate 50mm 1.57 bar (22.77 psi) Black | $552.00 | ||
| 005116 | Wastegate 50mm 1.57 bar (22.77 psi) Purple | $552.00 | ||
| 005117 | Wastegate 50mm 1.57 bar (22.77 psi) Red | $552.00 | ||
| 004955 | Wastegate 50mm .19 bar (2.76 psi) Silver | $552.00 | ||
| 004956 | Wastegate 50mm .19 bar (2.76 psi) Blue | $552.00 | ||
| 004957 | Wastegate 50mm .19 bar (2.76 psi) Black | $552.00 | ||
| 004958 | Wastegate 50mm .19 bar (2.76 psi) Purple | $552.00 | ||
| 004959 | Wastegate 50mm .19 bar (2.76 psi) Red | $552.00 | ||
| 004960 | Wastegate 50mm .27 bar (3.92 psi) Silver | $552.00 | ||
| 004961 | Wastegate 50mm .27 bar (3.92 psi) Blue | $552.00 | ||
| 004962 | Wastegate 50mm .27 bar (3.92 psi) Black | $552.00 | ||
| 004963 | Wastegate 50mm .27 bar (3.92 psi) Purple | $552.00 | ||
| 004964 | Wastegate 50mm .27 bar (3.92 psi) Red | $552.00 | ||
| 005004 | Wastegate 50mm .35 bar (5.08 psi) Silver | $552.00 | ||
| 005005 | Wastegate 50mm .35 bar (5.08 psi) Blue | $552.00 | ||
| 005006 | Wastegate 50mm .35 bar (5.08 psi) Black | $552.00 | ||
| 005007 | Wastegate 50mm .35 bar (5.08 psi) Purple | $552.00 | ||
| 005008 | Wastegate 50mm .35 bar (5.08 psi) Red | $552.00 | ||
| 005009 | Wastegate 50mm .43 bar (6.24 psi) Silver | $552.00 | ||
| 005010 | Wastegate 50mm .43 bar (6.24 psi) Blue | $552.00 | ||
| 005011 | Wastegate 50mm .43 bar (6.24 psi) Black | $552.00 | ||
| 005012 | Wastegate 50mm .43 bar (6.24 psi) Purple | $552.00 | ||
| 005013 | Wastegate 50mm .43 bar (6.24 psi) Red | $552.00 | ||
| 005014 | Wastegate 50mm .52 bar (7.54 psi) Silver | $552.00 | ||
| 005015 | Wastegate 50mm .52 bar (7.54 psi) Blue | $552.00 | ||
| 005016 | Wastegate 50mm .52 bar (7.54 psi) Black | $552.00 | ||
| 005017 | Wastegate 50mm .52 bar (7.54 psi) Purple | $552.00 | ||
| 005018 | Wastegate 50mm .52 bar (7.54 psi) Red | $552.00 | ||
| 005019 | Wastegate 50mm .592 bar (8.60 psi) Silver | $552.00 | ||
| 005020 | Wastegate 50mm .592 bar (8.60 psi) Blue | $552.00 | ||
| 004976 | Wastegate 50mm .592 bar (8.60 psi) Black | $552.00 | ||
| 005021 | Wastegate 50mm .592 bar (8.60 psi) Purple | $552.00 | ||
| 005022 | Wastegate 50mm .592 bar (8.60 psi) Red | $552.00 | ||
| 005023 | Wastegate 50mm .67 bar (9.72 psi) Silver | $552.00 | ||
| 005024 | Wastegate 50mm .67 bar (9.72 psi) Blue | $552.00 | ||
| 005025 | Wastegate 50mm .67 bar (9.72 psi) Black | $552.00 | ||
| 005026 | Wastegate 50mm .67 bar (9.72 psi) Purple | $552.00 | ||
| 005027 | Wastegate 50mm .67 bar (9.72 psi) Red | $552.00 | ||
| 005028 | Wastegate 50mm .75 bar (10.88 psi) Silver | $552.00 | ||
| 005029 | Wastegate 50mm .75 bar (10.88 psi) Blue | $552.00 | ||
| 005030 | Wastegate 50mm .75 bar (10.88 psi) Black | $552.00 | ||
| 005031 | Wastegate 50mm .75 bar (10.88 psi) Purple | $552.00 | ||
| 005032 | Wastegate 50mm .75 bar (10.88 psi) Red | $552.00 | ||
| 005033 | Wastegate 50mm .86 bar (12.47 psi) Silver | $552.00 | ||
| 005034 | Wastegate 50mm .86 bar (12.47 psi) Blue | $552.00 | ||
| 005035 | Wastegate 50mm .86 bar (12.47 psi) Black | $552.00 | ||
| 005036 | Wastegate 50mm .86 bar (12.47 psi) Purple | $552.00 | ||
| 005037 | Wastegate 50mm .86 bar (12.47 psi) Red | $552.00 | ||
| 005038 | Wastegate 50mm .95 bar (13.78 psi) Silver | $552.00 | ||
| 005039 | Wastegate 50mm .95 bar (13.78 psi) Blue | $552.00 | ||
| 005040 | Wastegate 50mm .95 bar (13.78 psi) Black | $552.00 | ||
| 005041 | Wastegate 50mm .95 bar (13.78 psi) Purple | $552.00 | ||
| 005042 | Wastegate 50mm .95 bar (13.78 psi) Red | $552.00 |
