MVS WASTEGATE WITH POSITION SENSOR (ASSY, BLACK ONLY)
Part # 007255
Technical Specifications:
- High temp alloy is used for valve and stainless steel valve housing will offer longer product life compared to competing designs.
- High temperature silicone reinforced actuator diaphragm.
- Stainless Steel actuator spring gives consistent pressure at high temperature.
- Stainless Steel is used for the valve seat, and valve bushing.
- All Stainless Steel hardware.
- Mating weld flanges are 304L.
- 3 lower ports and 2 top air signal ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
- Ultra compact design fits in very tight spaces, the unit stands only 3.7" tall.
- V-Band inlet and outlet make install easy, flanges and clamps are in the box!
- Integrated -4 AN water cooling ports that cycle a small amount of coolant through the actuator housing to keep the temperatures down in extreme conditions.
Included in the package:
- MV-S Assembly
- Inlet V-band Clamp & Flange
- Outlet V-Band Clamp & Flange
- CNC machined air and coolant fittings
- Plugs for unused air ports
- All six optional springs
| Item# | Description | Qty. | Price | |
|---|---|---|---|---|
| 007255 | MVS wastegate with position sensor (assy, black only) | $533.00 |

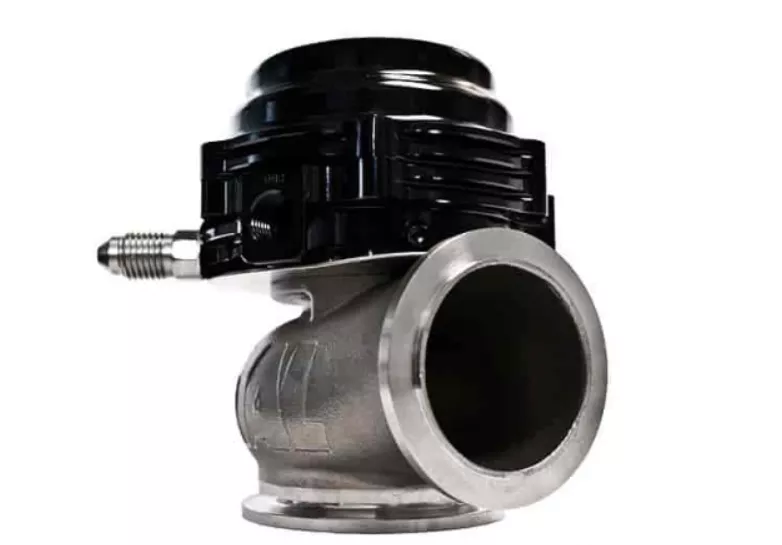

Gen4 CompGate40 7psi External Wastegate (Black)
(0 reviews) Share it View Details
IT’S BACK. The Gen4 CompGate40 and HyperGate45 have been approved for continuation and re-introduction at an all-new price!
Still Australian-made!
Still a rock-solid performer!
Still, hand assembled and individually tested before shipping!
One change – A price drop!
Turbosmart is proud to announce the product continuation, re-introduction and price drop of their Gen4 CompGate40 and HyperGate45 external wastegates. This re-introduction with reduced pricing will help those of you who need a lower-spec solution but still want that Australian-made, hand-tested quality you get from a manufacturer with over 25 years of experience!
The Gen4 CompGate40 is a 4th Generation external wastegate packed with value, performance and reliability! If you need a 40mm external wastegate and don’t have motorsport in mind, this is the solution for you! Genuine street performer with good flow & heat characteristics, which is suitable for pump fuel and e85 applications.
GenV HyperGate45 14psi External Wastegate (Purple)
(0 reviews) Share it View Details
The GenV WG45 HyperGate45 External Wastegate is a Motorsport-proven, cost-effective 45mm external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD is optimised and validated in-house for maximum flow and thermal management; the GenV Range has more features, options, and performance than any other gate.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
