MVS WASTEGATE 38MM (ALL SPRINGS) W/V-BAND CLAMPS
DUE TO THE CUSTOM-BUILT NATURE OF THE MV-SERIES, LEAD TIMES MAY VARY.

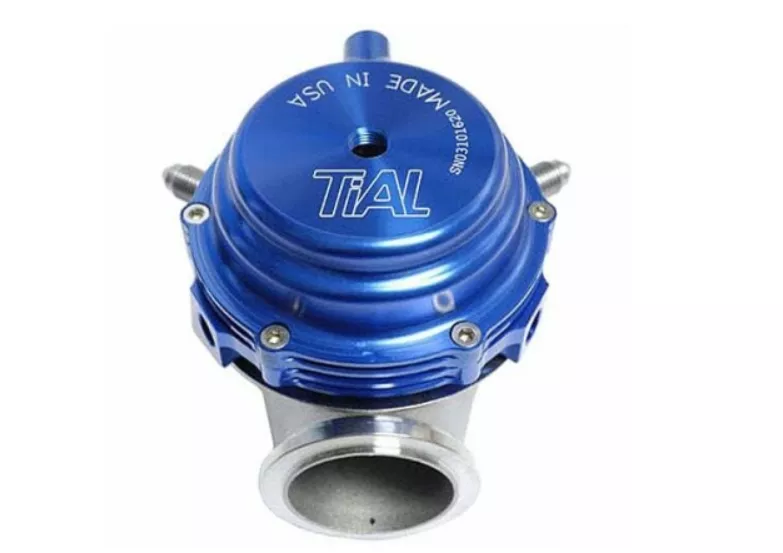

The MV-S 38mm unit is much more compact than its F38 predecessor - standing only 3.7” in height. The v-flanged design allows for significantly more flexibility for fabrication and installation.
Technical Specifications:
- High temp alloy is used for valve and stainless steel valve housing will offer longer product life compared to competing designs.
- High temperature silicone reinforced actuator diaphragm.
- Stainless Steel actuator spring gives consistent pressure at high temperature.
- Stainless Steel is used for the valve seat, and valve bushing.
- All Stainless Steel hardware.
- Mating weld flanges are 304L.
- 3 lower ports and 2 top air signal ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
- Ultra compact design fits in very tight spaces, the unit stands only 3.7" tall.
- V-Band inlet and outlet make install easy, flanges and clamps are in the box!
- Integrated -4 AN water cooling ports that cycle a small amount of coolant through the actuator housing to keep the temperatures down in extreme conditions.
Included in the package:
- MV-S Assembly
- Inlet V-band Clamp & Flange
- Outlet V-Band Clamp & Flange
- CNC machined air and coolant fittings
- Plugs for unused air ports
- All six optional springs
The MV-S 38mm unit is much more compact than its F38 predecessor - standing only 3.7” in height. The v-flanged design allows for significantly more flexibility for fabrication and installation.
Technical Specifications:
- High temp alloy is used for valve and stainless steel valve housing will offer longer product life compared to competing designs.
- High temperature silicone reinforced actuator diaphragm.
- Stainless Steel actuator spring gives consistent pressure at high temperature.
- Stainless Steel is used for the valve seat, and valve bushing.
- All Stainless Steel hardware.
- Mating weld flanges are 304L.
- 3 lower ports and 2 top air signal ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
- Ultra compact design fits in very tight spaces, the unit stands only 3.7" tall.
- V-Band inlet and outlet make install easy, flanges and clamps are in the box!
- Integrated -4 AN water cooling ports that cycle a small amount of coolant through the actuator housing to keep the temperatures down in extreme conditions.
Included in the package:
- MV-S Assembly
- Inlet V-band Clamp & Flange
- Outlet V-Band Clamp & Flange
- CNC machined air and coolant fittings
- Plugs for unused air ports
- All six optional springs
| Item# | Description | Qty. | Price | |
|---|---|---|---|---|
| 001931 | MVS wastegate all spring - silver band v-clamps | $354.95 | ||
| 002953 | MVS wastegate all spring - Black band v-clamps | $354.95 | ||
| 002952 | MVS wastegate all spring - Blue band v-clamps | $354.95 | ||
| 002954 | MVS wastegate all spring - purple band v-clamps | $354.95 | ||
| 002955 | MVS wastegate all spring - red band v-clamps | $354.95 |
MVR Wastegate 44mm (All Springs) W/v-band Clamps
(0 reviews) Share it View Details
The TiAL MVR 44mm Wastegate is more compact than any current 44 or 46mm wastegate on the market. You get two top air ports and three bottom air ports for easy install of your wastegate to optimize boost control. The MVR wastegate is a direct bolt on for our legacy-model V44.
