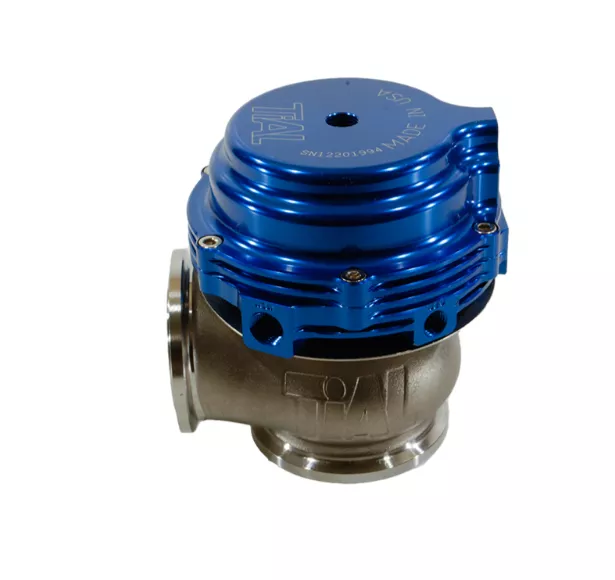

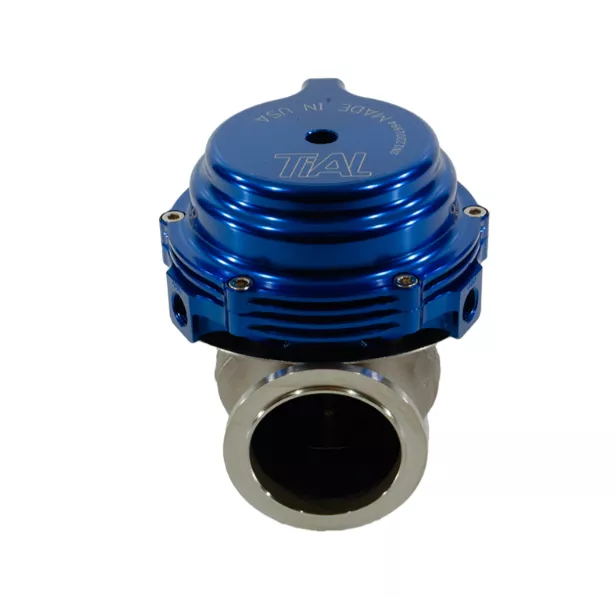

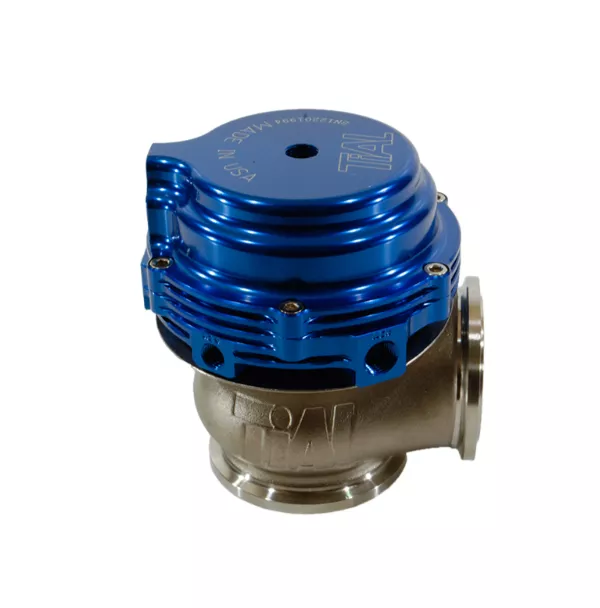

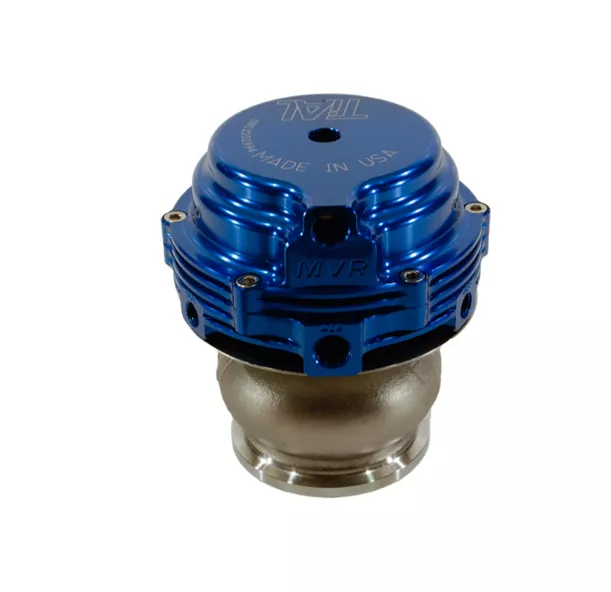

MVR WASTEGATE 44MM
Technical Specifications:
- High temp alloy is used for valve and stainless steel valve housing will offer longer product life compared to competing designs.
- High temperature silicone reinforced actuator diaphragm.
- Stainless Steel actuator spring gives consistent pressure at high temperature.
- Stainless Steel is used for the valve seat, and valve bushing.
- All Stainless Steel hardware.
- Mating weld flanges are 304L.
- Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
- 3 lower ports and 2 top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
- Ultra compact design fits in very tight spaces
- V-Band inlet and outlet make install easy, flanges and clamps are in the box!
- Integrated -4AN water cooling ports that cycle a small amount of coolant through the actuator top to keep the temperatures down in extreme conditions.
| Item# | Description | Qty. | Price | |
|---|---|---|---|---|
| 003513 | Wastegate 44mm 1.0 Bar (14.50 psi) Silver | $424.95 | ||
| 003540 | Wastegate 44mm 1.0 Bar (14.50 psi) Blue | $424.95 | ||
| 003414 | Wastegate 44mm 1.0 Bar (14.50 psi) Black | $424.95 | ||
| 003409 | Wastegate 44mm 1.0 Bar (14.50 psi) Purple | $424.95 | ||
| 003444 | Wastegate 44mm 1.0 Bar (14.50 psi) Red | $424.95 | ||
| 003793 | Wastegate 44mm 1.1 Bar (15.95 psi) Blue | $439.95 | ||
| 004682 | Wastegate 44mm 1.1 Bar (15.95 psi) Black | $439.95 | ||
| 004316 | Wastegate 44mm 1.2 Bar (17.40 psi) Black | $439.95 | ||
| 005966 | Wastegate 44mm 1.2 Bar (17.40 psi) Red | $439.95 | ||
| 004544 | Wastegate 44mm 1.3 Bar (18.85 psi) Silver | $439.95 | ||
| 003921 | Wastegate 44mm 1.3 Bar (18.85 psi) Black | $439.95 | ||
| 004493 | Wastegate 44mm 1.3 Bar (18.85 psi) Purple | $439.95 | ||
| 003777 | Wastegate 44mm 1.4 Bar (20.30 psi) Silver | $439.95 | ||
| 004500 | Wastegate 44mm 1.4 Bar (20.30 psi) Blue | $439.95 | ||
| 004755 | Wastegate 44mm 1.4 Bar (20.30 psi) Black | $439.95 | ||
| 005179 | Wastegate 44mm 1.4 Bar (20.30 psi) Purple | $439.95 | ||
| 003994 | Wastegate 44mm 1.4 Bar (20.30 psi) Red | $439.95 | ||
| 004478 | Wastegate 44mm .3 Bar (4.35 psi) Silver | $439.95 | ||
| 003871 | Wastegate 44mm .3 Bar (4.35 psi) Black | $439.95 | ||
| 004345 | Wastegate 44mm .3 Bar (4.35 psi) Purple | $439.95 | ||
| 003876 | Wastegate 44mm .3 Bar (4.35 psi) Red | $439.95 | ||
| 006232 | Wastegate 44mm .4 Bar (5.80 psi) Silver | $439.95 | ||
| 004324 | Wastegate 44mm .4 Bar (5.80 psi) Blue | $439.95 | ||
| 004476 | Wastegate 44mm .4 Bar (5.80 psi) Black | $439.95 | ||
| 004702 | Wastegate 44mm .4 Bar (5.80 psi) Red | $439.95 | ||
| 004770 | Wastegate 44mm .5 Bar (7.25 psi) Silver | $424.95 | ||
| 003867 | Wastegate 44mm .5 Bar (7.25 psi) Blue | $424.95 | ||
| 003816 | Wastegate 44mm .5 Bar (7.25 psi) Black | $424.95 | ||
| 005937 | Wastegate 44mm .5 Bar (7.25 psi) Purple | $424.95 | ||
| 006749 | Wastegate 44mm .5 Bar (7.25 psi) Red | $424.95 | ||
| 003964 | Wastegate 44mm .6 Bar (8.70 psi) Silver | $439.95 | ||
| 003975 | Wastegate 44mm .6 Bar (8.70 psi) Blue | $439.95 | ||
| 003887 | Wastegate 44mm .6 Bar (8.70 psi) Black | $439.95 | ||
| 003910 | Wastegate 44mm .6 Bar (8.70 psi) Red | $439.95 | ||
| 003881 | Wastegate 44mm .7 Bar (10.15 psi) Silver | $439.95 | ||
| 004516 | Wastegate 44mm .7 Bar (10.15 psi) Blue | $439.95 | ||
| 003880 | Wastegate 44mm .7 Bar (10.15 psi) Black | $439.95 | ||
| 004350 | Wastegate 44mm .7 Bar (10.15 psi) Red | $439.95 | ||
| 003985 | Wastegate 44mm .8 Bar (11.60 psi) Silver | $439.95 | ||
| 004088 | Wastegate 44mm .8 Bar (11.60 psi) Blue | $439.95 | ||
| 003874 | Wastegate 44mm .8 Bar (11.60 psi) Black | $439.95 | ||
| 004818 | Wastegate 44mm .8 Bar (11.60 psi) Red | $439.95 | ||
| 005184 | Wastegate 44mm .9 Bar (13.05 psi) Blue | $439.95 | ||
| 004494 | Wastegate 44mm .9 Bar (13.05 psi) Black | $439.95 | ||
| 004571 | Wastegate 44mm .9 Bar (13.05 psi) Purple | $439.95 | ||
| 004632 | Wastegate 44mm .9 Bar (13.05 psi) Red | $439.95 |
GenV HyperGate45 14psi External Wastegate (Red)
(0 reviews) Share it View Details
The GenV WG45 HyperGate45 External Wastegate is a Motorsport-proven, cost-effective 45mm external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management; the GenV Range has more features, options and performance than any other gate.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Precision GEN2 40MM OUTLET CLAMP/FLANGE KIT
(0 reviews) Share it View Details
GEN2 40MM OUTLET CLAMP/FLANGE KIT
