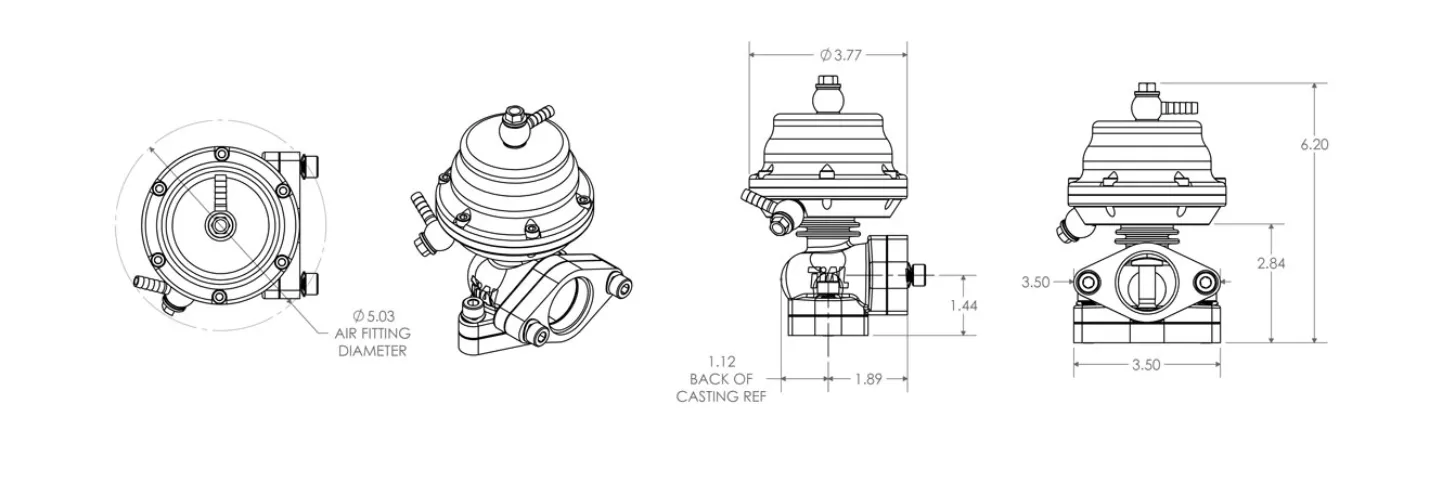

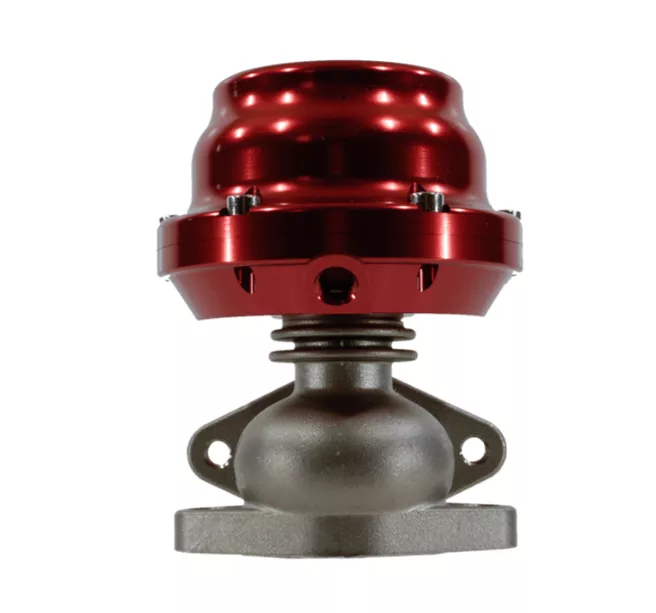

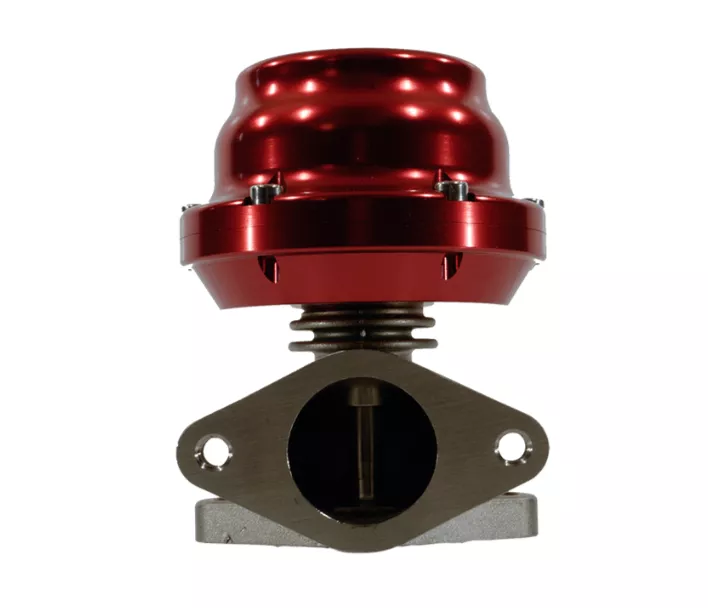

F38 WASTEGATE
Technical Specifications:
- High temp based alloy valve with a wear resistant coating offers longer product life compared to competing designs.
- Stainless steel valve housing.
- High temperature silicone reinforced actuator diaphragm.
- Stainless steel actuator spring gives consistent force at high temperature.
- Wear resistant stainless steel is used for the valve seat and valve bushing.
- Stainless steel hardware.
- Mating weld flanges are 304L SS.
- M10 air ports for easy install.
- Compact design fits in very tight spaces.
- 2-bolt inlet and outlet make install easy.
Included in the package:
- F38 wastegate assembly
- Inlet and outlet flanges, CNC machined in-house from 304L SS
- All air fittings, CNC machined in-house, from stainless steel and aluminum
| Item# | Description | Qty. | Price | |
|---|---|---|---|---|
| 001706 | Wastegate 38mm .3 Bar (3.63 psi) Silver | $304.50 | ||
| 002880 | Wastegate 38mm .3 Bar (3.63 psi) Black | $304.50 | ||
| 002883 | Wastegate 38mm .4 Bar (5.80 psi) Silver | $304.50 | ||
| 002885 | Wastegate 38mm .4 Bar (5.80 psi) Black | $304.50 | ||
| 002888 | Wastegate 38mm .5 Bar (7.25 psi) Silver | $304.50 | ||
| 002890 | Wastegate 38mm .5 Bar (7.25 psi) Black | $304.50 | ||
| 002893 | Wastegate 38mm .6 Bar (8.70 psi) Silver | $304.50 | ||
| 002895 | Wastegate 38mm .6 Bar (8.70 psi) Black | $304.50 | ||
| 002898 | Wastegate 38mm .7 Bar (10.15 psi) Silver | $304.50 | ||
| 002900 | Wastegate 38mm .7 Bar (10.15 psi) Black | $304.50 | ||
| 002903 | Wastegate 38mm .8 Bar (11.60 psi) Silver | $304.50 | ||
| 002905 | Wastegate 38mm .8 Bar (11.60 psi) Black | $304.50 | ||
| 002908 | Wastegate 38mm .9 Bar (13.05 psi) Silver | $304.50 | ||
| 002910 | Wastegate 38mm .9 Bar (13.05 psi) Black | $304.50 | ||
| 002913 | Wastegate 38mm 1.0 Bar (14.50 psi) Silver | $304.50 | ||
| 002915 | Wastegate 38mm 1.0 Bar (14.50 psi) Black | $304.50 | ||
| 002918 | Wastegate 38mm 1.1 Bar (14.50 psi) Silver | $304.50 | ||
| 002920 | Wastegate 38mm 1.1 Bar (14.50 psi) Black | $304.50 | ||
| 002923 | Wastegate 38mm 1.2 Bar (17.40 psi) Silver | $304.50 | ||
| 002925 | Wastegate 38mm 1.2 Bar (17.40 psi) Black | $304.50 | ||
| 002928 | Wastegate 38mm 1.3 Bar (18.85 psi) Silver | $304.50 | ||
| 002930 | Wastegate 38mm 1.3 Bar (18.85 psi) Black | $304.50 | ||
| 002933 | Wastegate 38mm 1.4 Bar (20.30 psi) Silver | $304.50 | ||
| 002935 | Wastegate 38mm 1.4 Bar (20.30 psi) Black | $304.50 | ||
| 002938 | Wastegate 38mm 1.5 Bar (21.75 psi) Silver | $304.50 | ||
| 002940 | Wastegate 38mm 1.5 Bar (21.75 psi) Black | $304.50 | ||
| 002943 | Wastegate 38mm 1.6 Bar (23.20 psi) Silver | $304.50 | ||
| 002945 | Wastegate 38mm 1.6 Bar (23.20 psi) Black | $304.50 |
V50D Wastegate
(0 reviews) Share it View Details
The V50D and V60D are compressed-gas-specific wastegates, designed from the ground-up to be the ultimate in high-pressure, 'top-down' boost control.
A unique inverted diaphragm provides sealing for up to 120psi of control gas pressure, while the reduced-size actuator housing reduces fill rates and enhances response time.
Unique low-pressure spring options provide for quick boost relief while staging and launching in drag-racing applications.
We sure hope you like black, because that's the only color offered for these models.
These units use the same form factor as the legendary V50 and V60, and retrofit kits are available for easy conversion of existing models.
